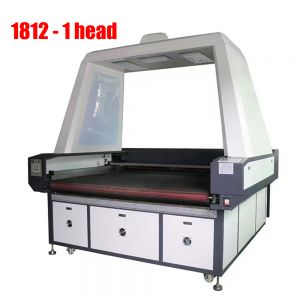

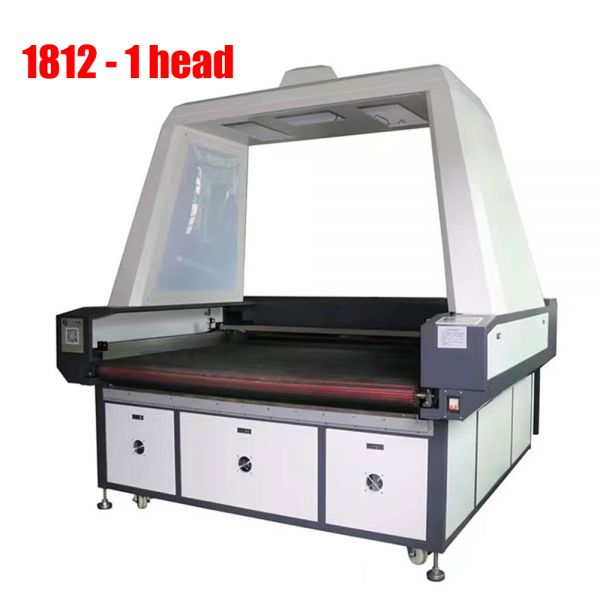

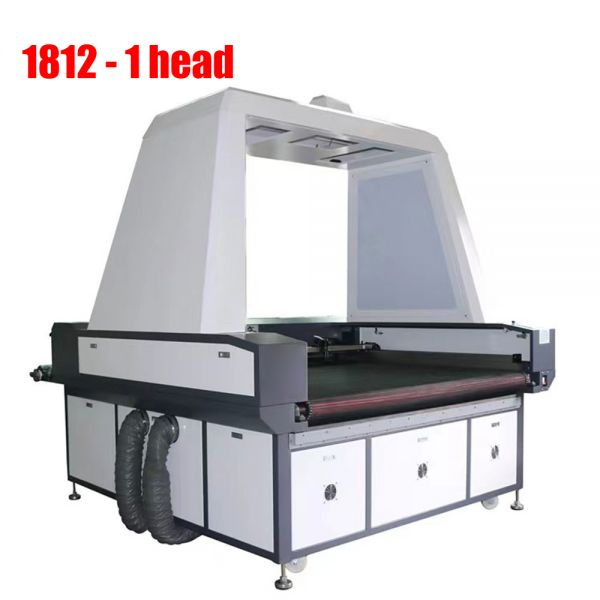

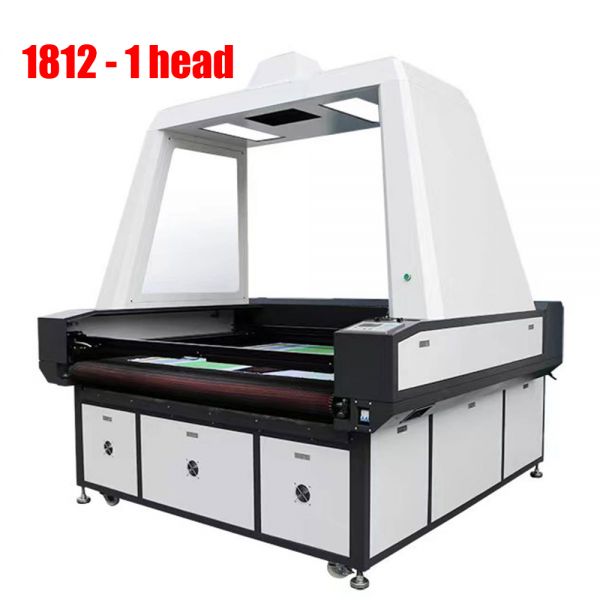

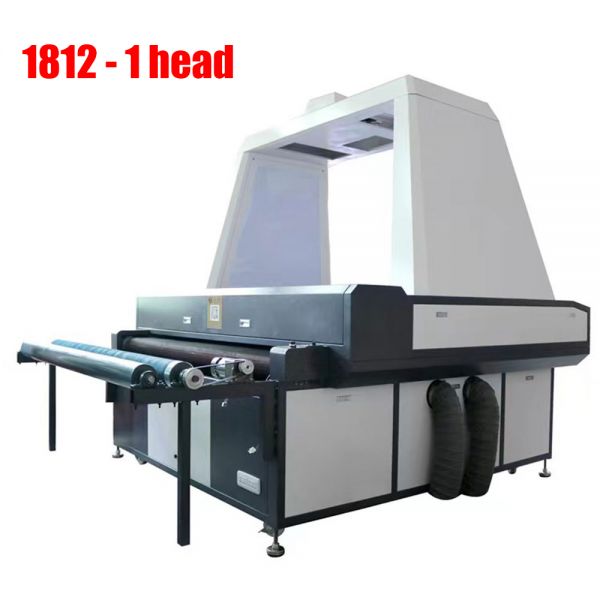

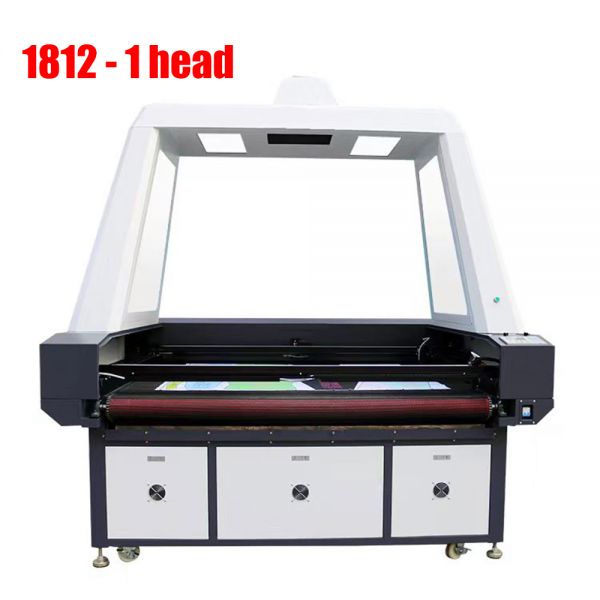

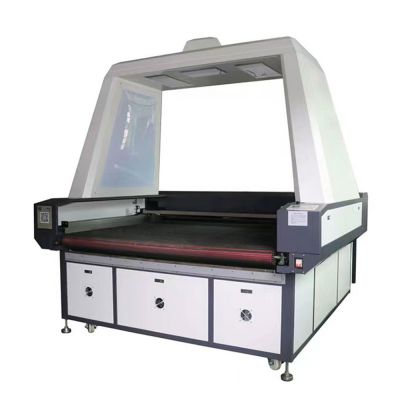

FM1812/1816 1-2 Heads 130W Fabric CCD Camera Cutting Machine Laser Cutter Printed Textile

   |   7 Transacciones

Codigo del articulo:SIT-FM-1812CCD

  • Precio Unitario : Mex.$ 196,522/set   (Aviso de Descuento) (Tiempo entrega 69-89 días)

  • Por Favor Eliga el Tipo

  • Cantidad: set(s) Costo Total : MXN Mex.$196,522
  • Peso de Envio: 2420.0lb (1100kg) freightFlete

  • Submit your order online to get membership points, a proforma invoice will be sent to you after you submit the order.
    Add to  Cart
Buyer Protection
1-2 Heads 130W Fabric CCD Camera Cutting Machine Laser Cutter Printed Textile

Features:
1.Adopt advanced recognition systems,through visual identification system putting the images into computer,identify automatically and located cutting correctly and fast,greatly reduces the material and the waste of time.
2.Fast continuous cutting function based on the powerful date processing ability of high-end DSP technology,professional camera recognition software,and the coordination between precision mechanical components,guaranteed the procision,high speed cutting.
3.Fast curvilinear cutting function:it can cut via any curve fast continuous cutting,the laser heads move in beautiful arc just evoke industry needs.
4.To fully support design software,such as CAD,CORELDRAW,PHOTOSHOP,friendly man-machine interface,live close to the industry needs.

Specification:

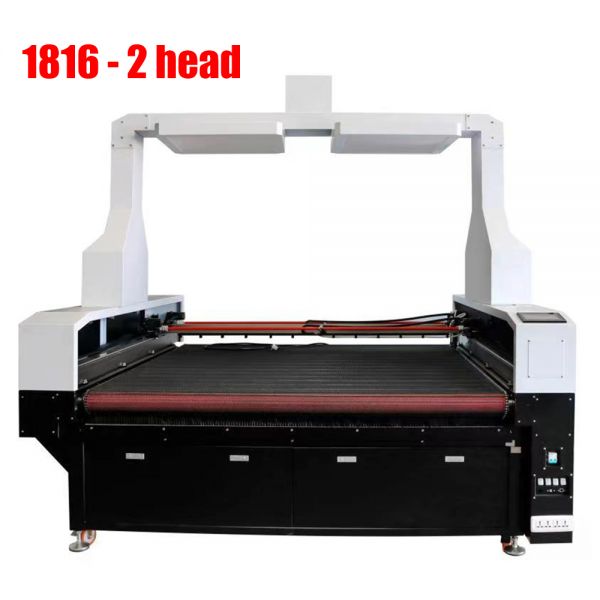

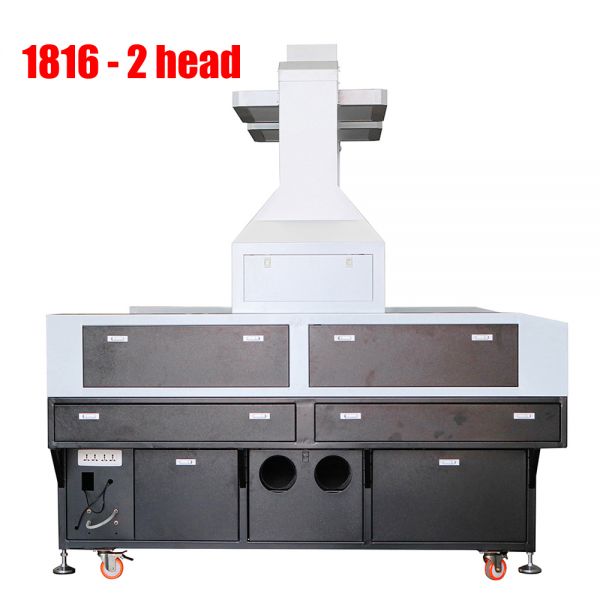

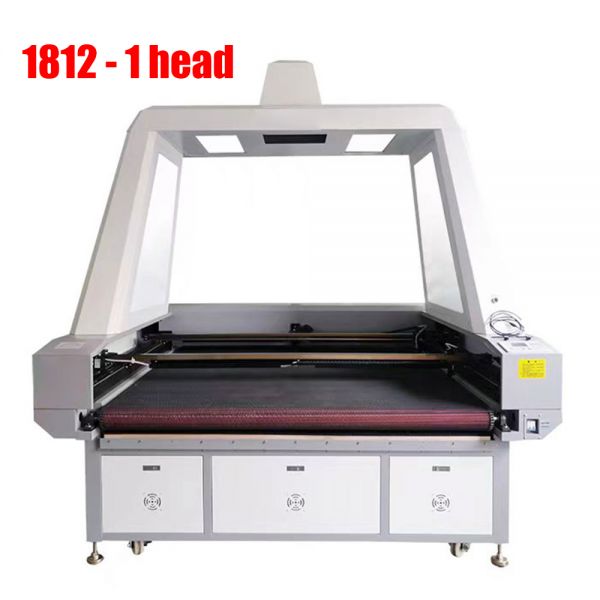

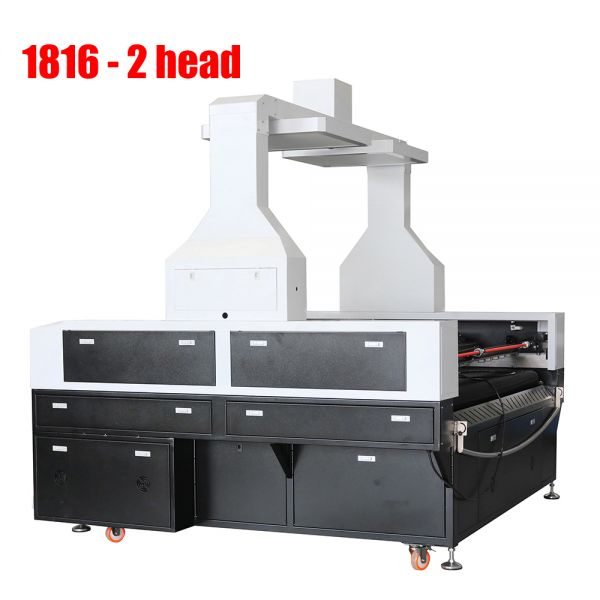

Model FM1812 FM1816
Working area  1800x1200mm 1800x1400mm
Camera type Canon 18MP/24MP cameras;1500D
Working speed  ≤600mm/s
Laser power  130W
Position accuracy  ±0.05mm
Laser tube sealed  CO2 laser tube
Compatible format  DWD,DXF,JPG,AI,TIFF,PLT,CDR,BMP,GIF
Driving system Motor drive

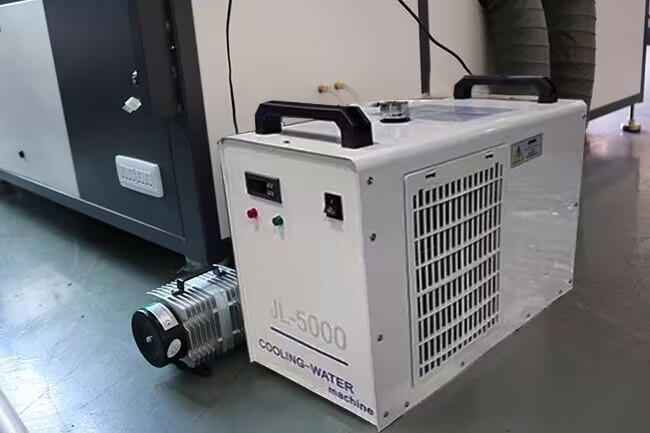

Cooling mode  Water cooling
Power  AC220±10% ,50~60Hz
Gross power  ≤3500W
Working temperature 0~45°C
Working humidity  5%~95%
Data transfer mode USB data cable to computer;USB flash disk;Net cable

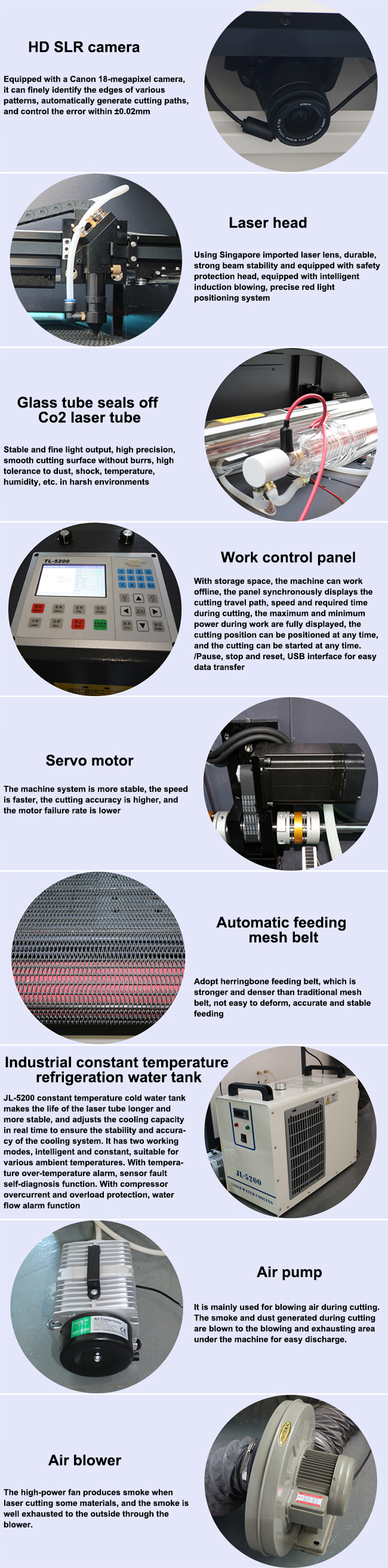

Details:






Applicable materials and industry:
Clothing, packing, model, car MATS under the blanking, ugg boots slippers, pillow under the warm hand treasure material, clothing affixed cloth embroidered, woven label, trademark cutting, garment accessories, ornamental engraving, drilling, trimming, leather punch, lofting and cutting, organic glass, plastic, PVC, paper, MuZhu cutting: MuZhu, leather, pottery and porcelain, marble sculpture.

Apply to industry:
Engraving printing, garment, leather goods, furniture, toys, advertising, decoration, arts and crafts, decoration, building model, electrical appliances, plastics, home act the role ofing, handbags, gloves, cloth art computer embroidery and clipping, packaging and paper industry and other industries.
