Screen Printing Rubber Silicone Strip Cutter
  • Screen Printing Rubber Silicone Strip Cutter
  • Screen Printing Rubber Silicone Strip Cutter
  • Screen Printing Rubber Silicone Strip Cutter
  • Screen Printing Rubber Silicone Strip Cutter
  • Screen Printing Rubber Silicone Strip Cutter

Ver imagen más grande y otras vistas (con zoom)

Screen Printing Rubber Silicone Strip Cutter

Precio CON IVA,Pero no Incluye Pago Paypal.



Codigo del articulo:SPM-TJ-SPE-QGQ

  • Precio Unitario : Mex.$ 2,751/set   (Aviso de Descuento) (Tiempo entrega 8-15 días)

  • Cantidad: set(s) Costo Total : MXN Mex.$2,751
  • Peso de Envio: 5.5lb (2.5kg) freightFlete

  • Submit your order online to get membership points, a proforma invoice will be sent to you after you submit the order.
    Add to  Cart

Buyer Protection

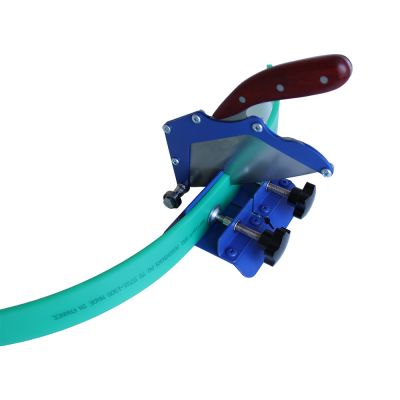

Screen Printing Rubber Silicone Strip Cutter

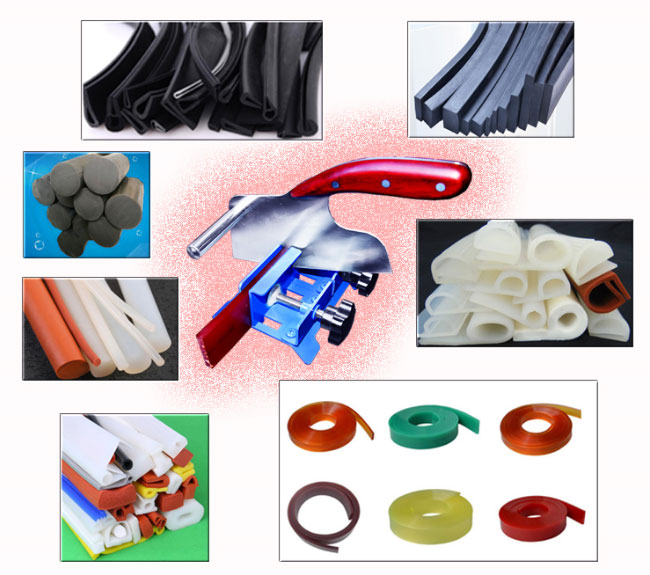

This cutter is mainly used for cutting all kinds of silk screen scraping strips, all kinds of rubber, silica gel strips, round rods and other soft materials. The fixed clamp fix the cutting materials. Special high strength stainless steel slice cutting knife is used for cutting.Small force, precise cutting size, smooth cutting surface.

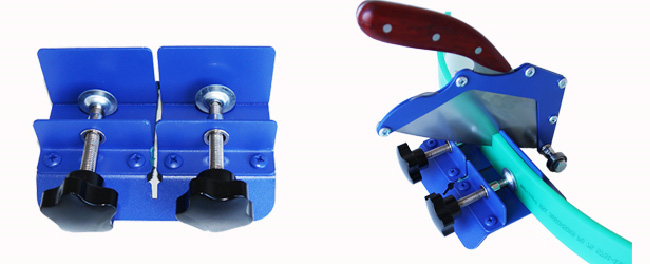

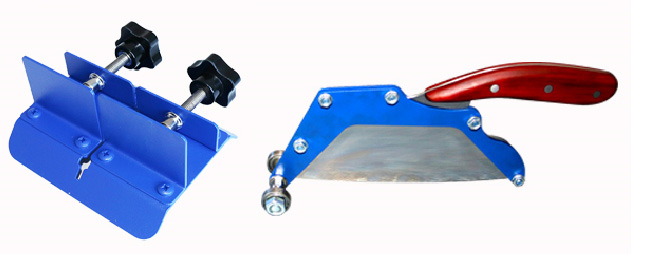

This cutter adopts splint structure, clip the rubber strip on the shelf, and there is a 3mm cutting groove between the splint on both sides. The cutting can be completed by pushing and pulling along the cutting groove with a special knife.

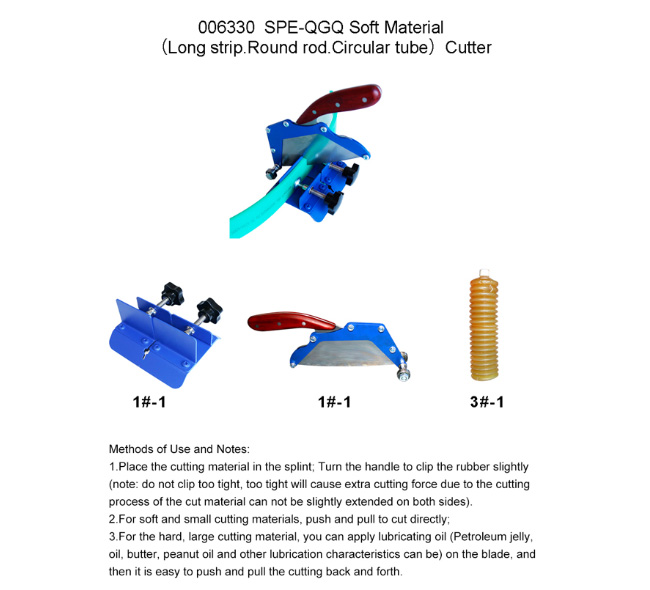

Methods of Use and Notes:
1.Place the cutting material in the splint; Turn the handle to clip the rubber slightly(note: do not clip too tight, too tight will cause extra cutting force due to the cutting process of the cut material can not be slightly extended on both sides).
2.For soft and small cutting materials, push and pull to cut directly.

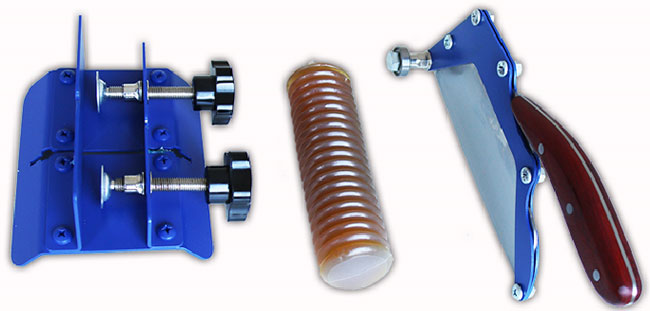

3.For the hard, large cutting material, you can apply lubricating oil (Petroleum jelly, oil, butter, peanut oil and other lubrication characteristics can be) on the blade, and then it is easy to push and pull the cutting back and forth.

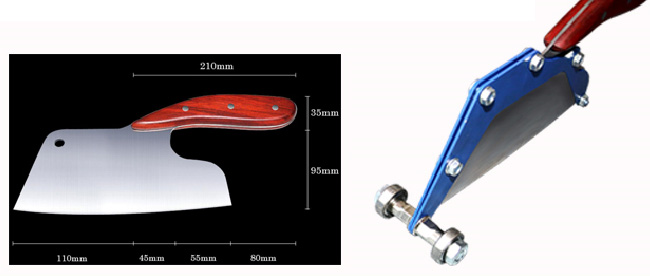

4.The cutter is equipped with a stainless steel cutting knife with sharp edge, knife face thin, 90 mm below the knife face, plane v-knife face from the edge to the top is 3.5""/90 mm, the top knife width of only 0.05""/2 mm, the knife body thin is most suitable for a certain amount of flexibility of the various strips, bar cutting. (the common blade in the market is v-shaped 0.4""-0.6""/10-15mm, and the blade face is inverted u-shaped. The cutting thickness suddenly increases from the upper end of v-shaped blade, making cutting extremely laboriously)
5.The cutter is equipped with power handle, which can cut with both hands more quickly and less labor.
6.The height of the cutting platform splint is 2.3"" /58mm (the height of cutting material is suitable for less than 2""/55mm), the width of both sides is 3""/80mm, and the cutting groove (gap) between the splint on both sides is 0.1""/3mm; Minimum cutting thickness is 0.1""/3 mm, maximum cutting thickness is 1.1""/30 mm.
Package:
Gross weight:5.5 lb /2.5 kg
Packing size:13 x 8.5 x 5 inch/33 x 21.5 x 13 cm
