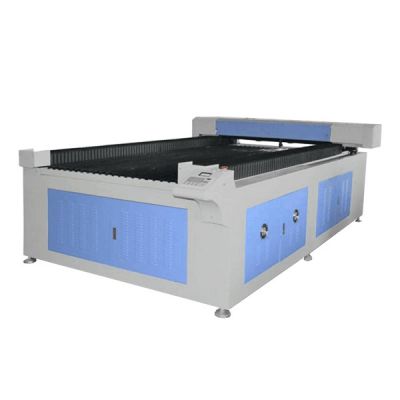

1300mm x 2500mm 100W Laser Cutting Bed with CCD Control System
  • 1300mm x 2500mm 100W Laser Cutting Bed with CCD Control System

Ver imagen más grande y otras vistas (con zoom)

1300mm x 2500mm 100W Laser Cutting Bed with CCD Control System

Precio CON IVA,Pero no Incluye Pago Paypal.

   |   27 Transacciones

Codigo del articulo:SIT-QL1325-CCD

  • Precio : Mex.$ 191,884/set   (Aviso de Descuento) (Tiempo entrega 69-89 días)

  • Cantidad: set(s) Costo Total : MXN Mex.$191,884
  • Peso de Envio: 1760.0lb (800kg) freightFlete

  • inquire
Buyer Protection

Features:
1.QILI series of laser engraving cutting machines adopt new type, hi-speed laser tubes, which make beam more stable than common laser tubes.
2.Compared with common laser engravers,QL series of laser engravers adopt more specific design of machine-body,higher strength steel frame structure,which makes strength forty percent  higher, never deformable, and guarantee high speed and high precision operation.
3.Humanized and most modernized design of appearance reflects caring idea of QILI,it is simple to operate and maintenance.
4. Zhiyuan CCD control system and special motion control chip make the machines cut curve continuously and rapidly,the selection function of the shortest path makes efficiency higher.
5. All machines are configurated with U-disk offline control system, so it is more simple and easier to operate.
6.The red-light positioning device can indicate process site of laser head to avoid trouble of manual position.

Technical Parameters:

MODEL QL1325
Effective working  area 1300*2500mmm
Laser power 100W
Laser type 10.6um,CO2 sealed glass laser tube
Cooling mode Water cooling
Engraving scanning speed 0-60000mm/min
Cutting speed 0-30000mm/min
Laser energy control 1-100% software setting
Mini-shaping character Chinese character2.0*2.0mm,English1.0*1.0mm
Max-scanning precision 2500DPI
Positioning precision ≤+0.01mm
Supported graphic format DST PLT BMP DXF AI
Supported software Tiandao embroidery, photoshop,coreldraw,auto CAD
Color-separation cutting Yes
Power AC110V-220V+10%,50HZ-60HZ
Driving system Stepper motor

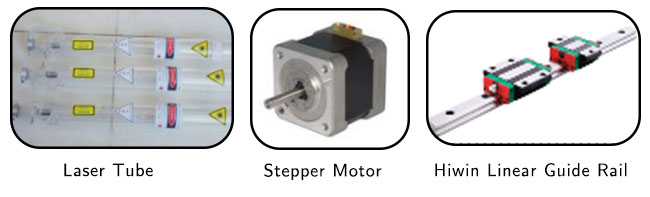

Accessories:

Configuration:

Item Product Parts Name and Model No. ( 1325 Laser Cutting Bed) QTY. UNIT
Control System Zhiyuan CCD 1 set
Control card Zhiyuan 1 set
Laser Tube Yongli 100w 1 piece
Lathe bed Electromagnetic Compatibility and tamper-proof Integration 1 set
Transmission System Hiwin Square Linear Guide Rail, Sliding Block; wide Belt 2 set
Leadshine Driver 860, High precision Motor. Shanghai Guanyang Power 2 set
Fulong Synchronous Belt, Synchronizing Wheel 2 set
Optical Module Retroreflector: Imported Ocular 3 pieces, Focus Lens 1 piece (50.8) 1 set
Accessories Structural parts ( Mirror Bracket, Reflect Bracket, Shaft Block, Transmission Shaft) 1 set
Air Tube 1 set
Axial Fan 1 set
Laser Tube Cooling system 1 set
Assist Blowing Device 1 set
High-power Exhaust Device 1 set
Instruction Manual, Software CD 1 set
Blades For Vertical paving 1 set

Applicable Industries:
Advertising, clothing leather, cloth toy, computer embroider and tailor, model cutting, artcrafts, decoration, packaging , paper articles industries

Applicable Materials:
Advertising materials(Acrylic), cloth, leather, ruber, bamboo, crystal, Plexiglass, tile, marble, jade, plastic, etc.
