1390 Yongli 100W/130W/150W Maquina Desmontable Corte CO2 Laser de Alta Prescision
  • 1390 Yongli 100W/130W/150W Maquina Desmontable Corte CO2 Laser de Alta Prescision

Ver imagen más grande y otras vistas (con zoom)

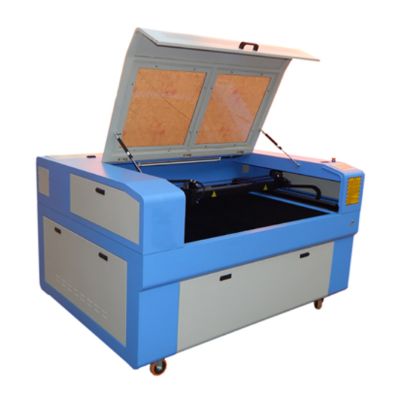

1390 Yongli 100W/130W/150W Maquina Desmontable Corte CO2 Laser de Alta Prescision

Precio CON IVA,Pero no Incluye Pago Paypal.

   |   329 Transacciones

Codigo del articulo:SIT-QL-1390I

  • Precio Unitario : Mex.$ 74,100/set   (Aviso de Descuento) (en existencia)

  • Cantidad: pc(s) Costo Total : MXN Mex.$74,100
  • Peso de Envio: 880.0lb (400kg) freightFlete

  • Submit your order online to get membership points, a proforma invoice will be sent to you after you submit the order.
    Add to  Cart
Buyer Protection

ZnSe Focus Lens:Diameter 20mm,Focal Length 2" (50.8mm)
Reflection Mirrors:Diameter 20mm,Lens Thickness 3mm
The machine includes blade platform, and the honeycomb platform is optional.

Descripcion:
El modulo de cinturon de nuevos materiales es adoptado en grabadoras laser, las grabadoras son de gran presicion, gran tiempo de vida. El tubo laser es separado de la superficie de trabajo, esto asegura seguridad y limpieza en el camino del laser. Todos los switches, sockets y juntas estan al nivel de la maquina.

Caracteristicas:

• Con un nuevo tubo laser de alta velocidad, genera un laser mas estable que el tubo convenciona, el tiempo de vida del tubo puede llegar hasta 1000 horas.
• El diseño del cuerpo es mas especifico, estructura de acero de alta resistencia, 40% mas fuerza, no se deforma.
• Diseño mas humano y mejorado, facil de operar y mantener.
• Sistema de control DSP avanzado y un control de movimiento permite a la maquina cortar curvas continua y rapidamente , la funcion de seleccion del camino mas corto mejora la eficiencia.
• Todas las maquinas estan configuradas con un sistema de control fuera de linea U-disk, asi es mas facil y simple de operar.
• El dispositivo de posicionamiento de luz puede indicar el sitio de procesamiento laser para evitar problemas con el posicionamiento manual.

Especificaciones:

Modelo QL-1390 Maquina de grabado laser
Area de trabajo 1300x900 mm
Potencia de laser 100W\130W\150W
Tipo de laser 10.6um,co2 tubo de vidrio de gas sellado
Modo de enfriamiento Agua
Velocidad de escaneo 0-60000mm/min
Velocidad de corte 0-30000mm/min
Control de energia laser 1-100%
Caracter Caracteres chinos 2.0*2.0mm, Ingles 1.0*1.0mm
Prescision de escaner 2500DPI
Prescision de posicion ≦+0.01mm
Formato grafico DSP PLT BMP DXF AI
Software Tiandao embroidery,photoshop,coreldraw,autoCAD
Division de corte Si
Energia AC220V+10%,50HZ
Systema de movimiento Motor de etapas
Config. opcional Altura de mesa,rotacion,doble cabeza laser

Acrylic cutting parameters:

Laser tube power 100W 130W 150W
Max cutting thickness 8mm 10mm 15mm
Cutting speed 3m/min 3m/min 3m/min

Details:







Why buy from us?

Best quality control system in low power laser industry!

Parts quality guaranteed
The main board and power supply of laser cutting machine were put into an oven at temperature of 50 degree for an aging test, minimally 4 hours.

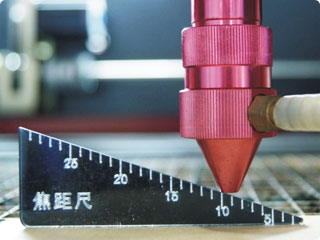

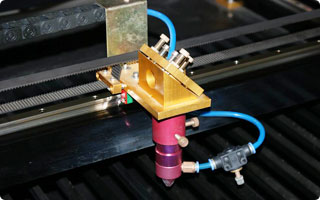

Laser head
Enclosed, with air blowing device, which is safer than unclosed head.

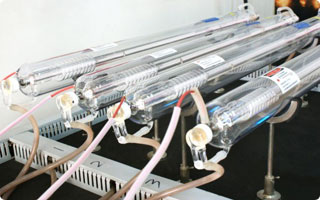

Laser Test
Each laser tube and its power source shall be tested for 8 hours on/off power test: There are strict inspection criterions for its light beam quality and laser power.

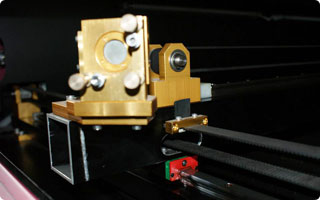

Guide rail

High precision equilibrium linear guide rail imported from Korea. Each guide rail shall be tested before installation.

100% Check of Materials
We perform 100% check to all the parts of laser cutting machine in order to avoid any disqualified parts coming into the next step of work.

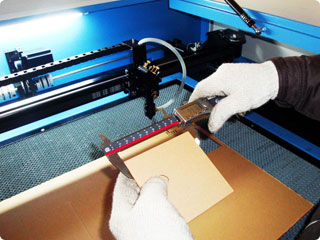

Inspection Before Delivery
Any laser cutting machine before departing the factory, we will perform cutting test with the cutting precision at 0.1mm to test its verticality and dimensional deviation.

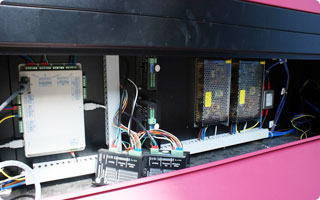

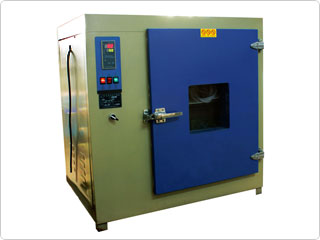

Test of Main Board & Power Supply
Put the main board and power supply of laser cutting machine into an oven at temperature of 50 degree for an aging test, minimally 4 hours.

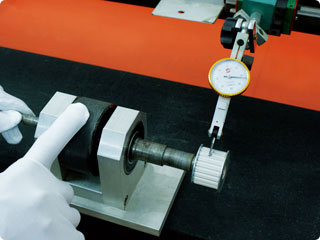

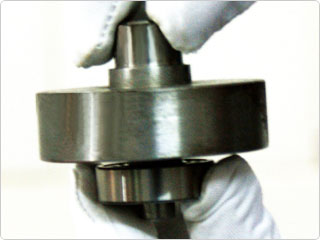

Test of Transmission Parts
Check the synchronizing wheel and bearing of the laser engraver whether are concentric and easy in rotation as well as its deviation whether is less or equal to 0.02mm.
Processing Crotrol
During the production of laser engraving machines, our quality inspector will patrol and check its installation quality. It is mainly to check the parts of mechanics and electrics, cables whether satisfy the requirements of installation blueprint. If any error or problem found, the correction treatment will be executed immediately.

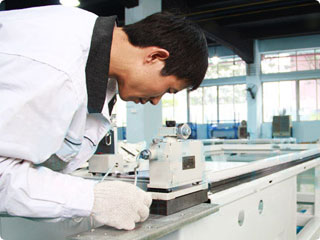

Test of Guideway and Rectangular Tube
Mainly to test the flatness, linearity and torsion resistance of t the guideway and rectangular tube. Put the rectangular tube and the guideway onto a marble platform, then use dial gage calibrator to check: the tolerance bigger than 0.05mm/m is disqualified.

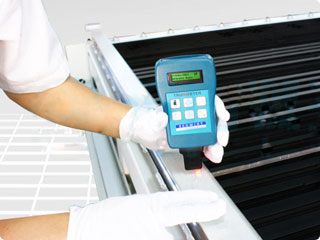

Stretching Force Tester for the Belt of Laser
Cutting Machine
Ensure the machine platform cutting in consistency.

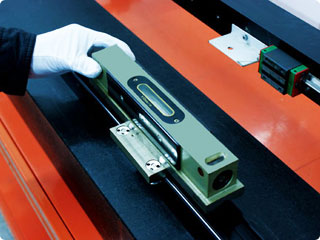

Collimator Test
The test method for the linearity, flatness and verticality of the laser cutting machine’s guideway is to use Auto Pricise Collimator 1401 Double-way.

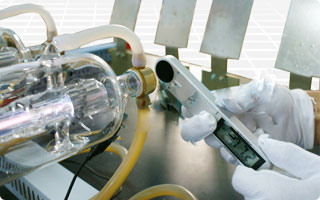

Handy Power Indicator of Laser Cutting Machine
Any point of the laser cutting machine’s power test, ensure the laser cutting machine to give best cutting effect.

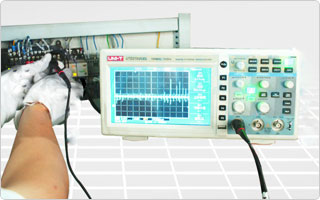

Electromagnetic Oscillograph of Laser Cutting Machine
To test the electromagnetic interference and ensure the running stability of laser cutting machine.

Aplicaciones:
1.Industria de moldes(construcciones, navegacion aerea), anuncios, decoraciones, industria de regalos, industria electrica y de electronicos.
2.Acrilico, placa de madera, bamboo, placa de doble color, papel, cuero, concha, coco, cuernos, placa ABS y otros materiales no metalicos.
