130W 1390 Laser Cutter ,With Electric Up and Down Lifting Table, Rotary Fixture, Stepper Motor

8%
OFF

  • 130W 1390 Laser Cutter ,With Electric Up and Down Lifting Table, Rotary Fixture, Stepper Motor
  • 130W 1390 Laser Cutter ,With Electric Up and Down Lifting Table, Rotary Fixture, Stepper Motor
  • 130W 1390 Laser Cutter ,With Electric Up and Down Lifting Table, Rotary Fixture, Stepper Motor
  • 130W 1390 Laser Cutter ,With Electric Up and Down Lifting Table, Rotary Fixture, Stepper Motor
  • 130W 1390 Laser Cutter ,With Electric Up and Down Lifting Table, Rotary Fixture, Stepper Motor
  • 130W 1390 Laser Cutter ,With Electric Up and Down Lifting Table, Rotary Fixture, Stepper Motor

Ver imagen más grande y otras vistas (con zoom)

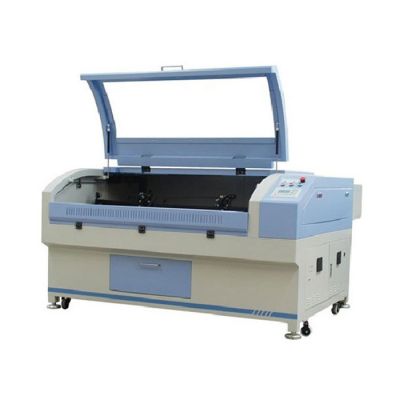

130W 1390 Laser Cutter ,With Electric Up and Down Lifting Table, Rotary Fixture, Stepper Motor

Precio CON IVA

   |   43 Transacciones

Codigo del articulo:LCM-CM1309SHB-130W

  • Precio Unitario : Mex.$141,163/set (en existencia)

  • Precio de PRomocion : Mex.$129,870/set Usted Ahorra : Mex.$11293.00/set (8%)

  • Por Favor Eliga el Tipo
    Stepper Mtor+Single Head
  • Cantidad: set(s) Costo Total : MXN Mex.$129,870
  • Peso de Envio: 2641.7lb (1200.77kg) freightFlete

  • Submit your order online to get membership points, a proforma invoice will be sent to you after you submit the order.
    Add to  Cart
Buyer Protection

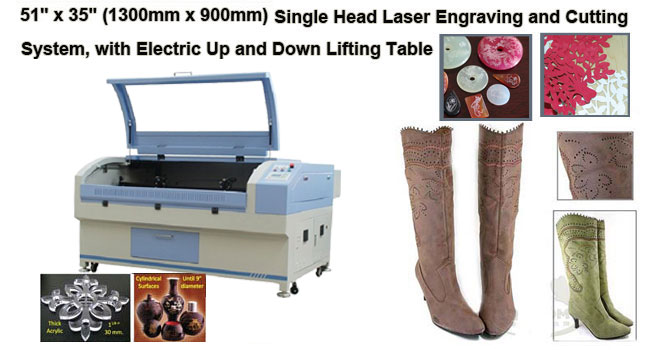

Single Head Laser Engraving and Cutting System, Stepper Motor

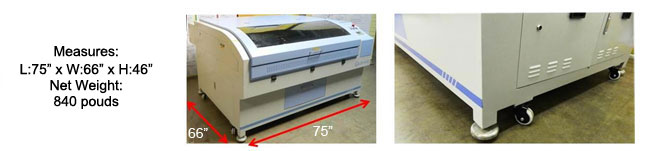

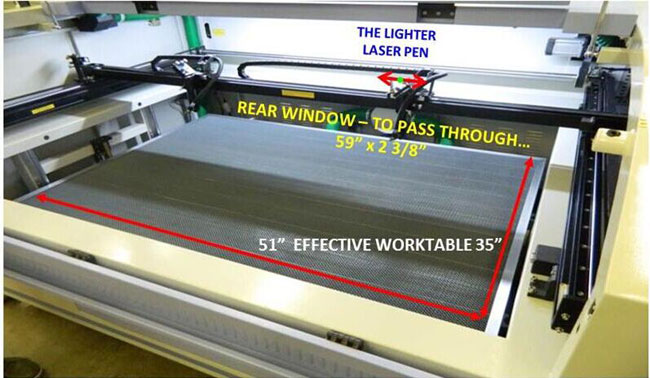

Large worktable (51" x 35"x 10") and rear pass-thru allows easy the loading of materials such as bulk rolls or full 4’ x 8’ or 4’x10’ sheets.
Reason why we can offer you the most convenient price of the market, 1 year of the best warranty and the faster shipping of any spare part and technical support.

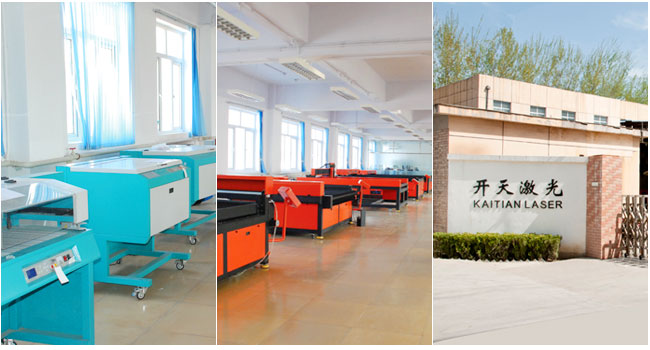

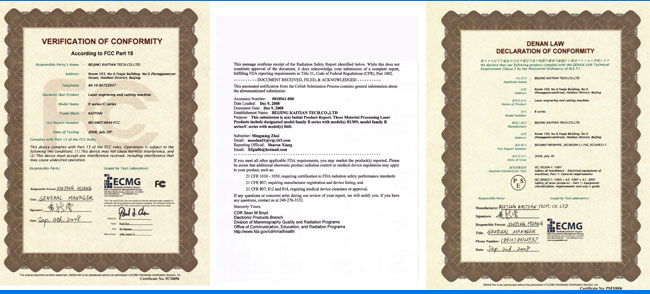

The high quality, RELIABILITY AND PROFITABILITY of our CM1309SHB is supported by our Research and Development Department with more than 30 expert engineers, masters and doctors in physics and electronic sciences of the laser technology and manufactured in accordance with the programs QB / T1700-2001 and ISO9001: 2000.
With laser tubes of 130 Watts, this laser engraving and cutting machine is the best if you need high quality and high speed cutting and engraving on an area of 51 x 35 inches. Also, it can engrave pieces until 20 inches of height or cylindrical surfaces until 9 inches of diameter.
details

1. The Most Profitable Work Area
(1) Honeycomb to cut thinnest material (fabric, leather and paper, etc.)
(2) Stripped to cut hard and inflammable materials (acrylic, wood and foam, etc.) and getting the cleanest edge cut.

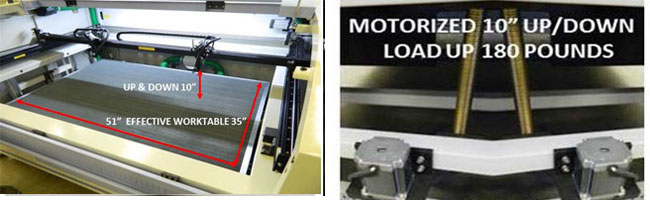

The Up / Down work table can fit pieces of 10" deep. Also, you can remove both worktable and reaching 20" deep. It is powered by two motor up / down worktable with speed control, it can load 200 pound.

Effective work area:
51 x 35 x 10 inches.
Single Head Laser Engraving and Cutting System, Stepper Motor 1

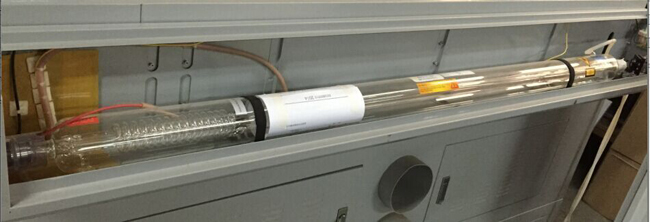

2. Single Laser Tube

Laser tube 130W RC - KT: Real power to cut until 1" -1.18" (30 mm.) thick acrylic - more than any other laser machine - and taking in advantage the high speed of servo motors.
Our laser tube 130W RC - KT is manufactured by us and our technology to get until 10,000 working hours and the replacement is just about $800.00; this means you are paying just $0.62 per Kilowatts by hour, better than any other.
Emits a perfect laser beam. Easier alignment system, the laser tube lies up on stable and adjustable stands.
Protection system to avoid spark that is better than others.

3.Two Large Worktable - Motorized Up/Down X:51”- Y:35”- Z:10"
Taking advantage of its intelligent Japanese SERVO MOTORS and powerfull laser tube of 130W each, this is the best laser machine for cutting and engraving on high quality and high speed on 51“ x 35“ effective work area, its motorized up/down worktable allows placing pieces up to 10". Also, its rotary attachment can engrave cylindrical surfaces until 8"of diameter.Its technology and power guarantee making cuts up to 1+1/4”(30 mm.) acrylic in single pass… better and faster than others similar in the market.

ROTARY ATTACHMENT - head with clamping grippers - system to engrave curve surfaces until 8” diameter… better and faster than others similar in the market. Rear pass through window to work with whole sheet of acrylic, MDF, foam,wood, plywood,etc. – as well as bulk rolls of fabric, leather, cardboard, etc.

Ample two work table sets X:51” Y:35” Z:10": One (1) honeycomb to cut thin material (fabric, paper…) and other (1) with thin strips metal to cut hard and inflammable materials (acrylic, wood, foam...). Gets the cleanest edge cut.

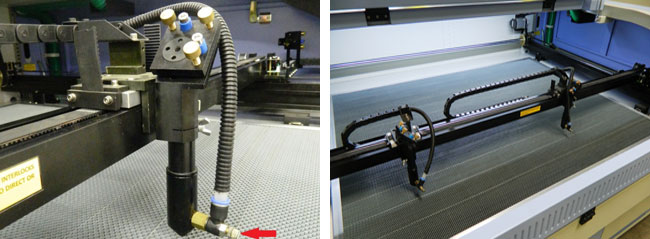

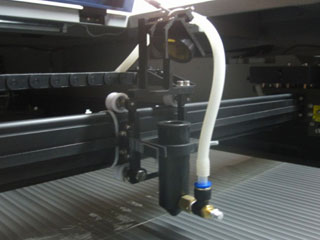

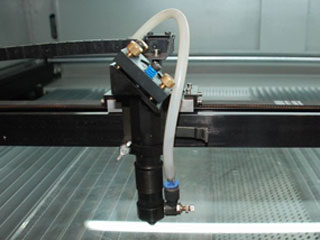

4. Single Laser Head


Efficient transmission laser beam system: The perfect laser beam comes from the laser tube, the silicon mirrors reflect the 99% of the power and the American laser lens doesn't absorb power, allows the pass of energy focused in the point of work.

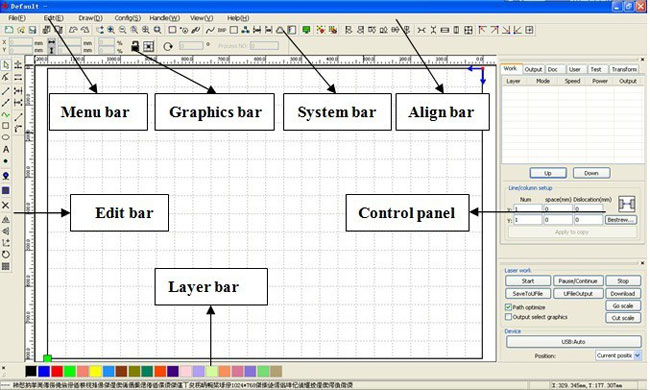

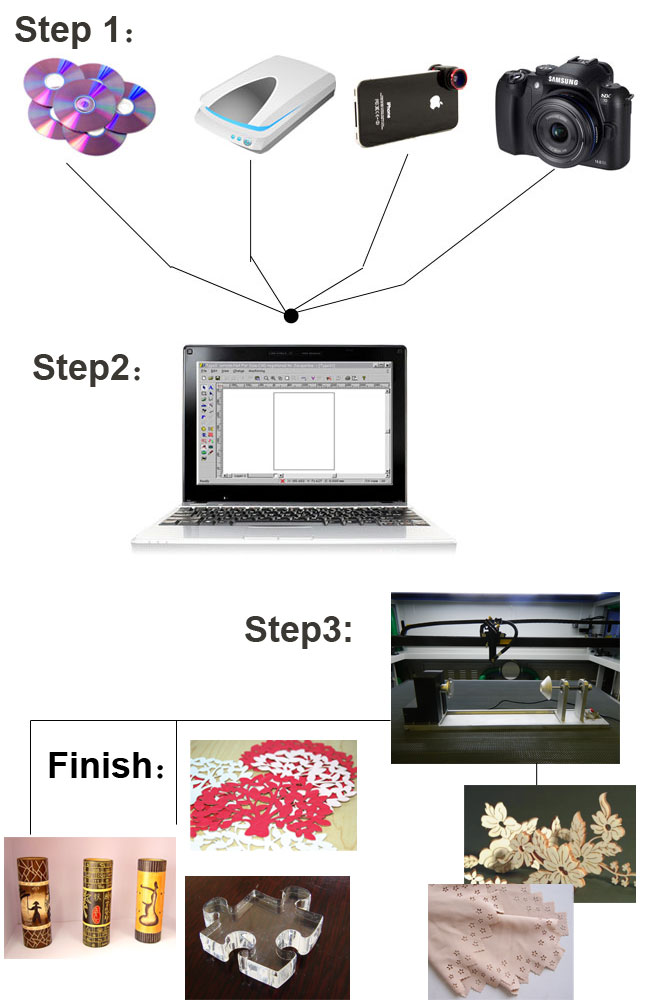

5. Software and Working Control
The CM1309DH communicates via it USB 2.0 port to a computer and its control software. Similar to outputting to a printer, this makes it easy to manage various parameters such as power, speed and resolution in order to achieve the desired results. The controller software is included at no additional charge.
Formats Supported by the Software
Supports practically all standard graphic design formats: bmp, gif, jpg, pcx, cad, tga, tiff, plt, cdr, dmg, dxf and dst.

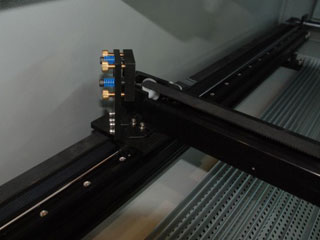

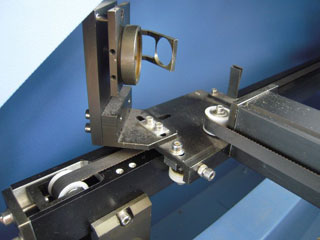

6. Laser Head X-Y-Z Axis Positioning System
Its Laser head positioning system is fast and extremely accurate thanks to its components. Its steel gantry rails and laser head movement system is made in Korea and its electronic controller motors are made in Japan.

7. Light Path System


Our laser machine has an American optics system that optimizes the focus and efficient of the laser beam on materials, allowing it to produce fine cuts or deep engravings, depending on your requirements.
This laser lens doesn’t absorb power and can last for more time than others.

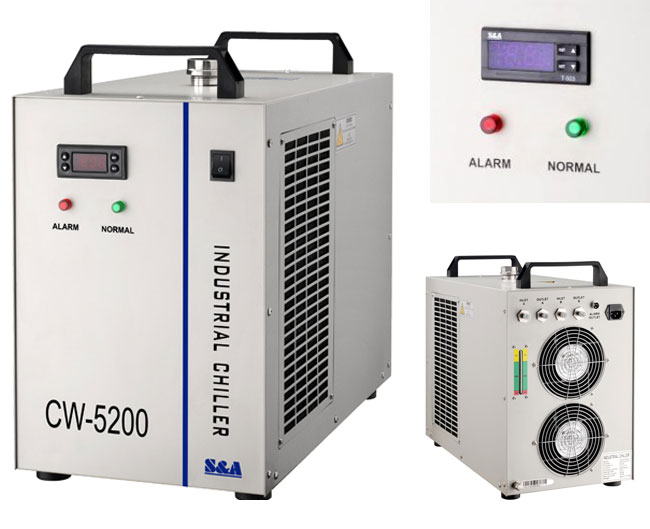

8. Electronic Chiller Included
Highly efficient with only minimal maintenance, the included CW5200 ELECTRONIC CHILLER regulates and controls the laser tubes temperature in the while in operation.

9. Exhaust Blower and Tube Included


Various materials release small amounts of fumes and gases in the engraving or cutting process. To extract these fumes and gases, our CM1309 comes equipped with one exhaust system and 12 feet (4 meters) of adjustable ventilation duct tubing to be installed when the machine is being operated inside a small and enclosed area.

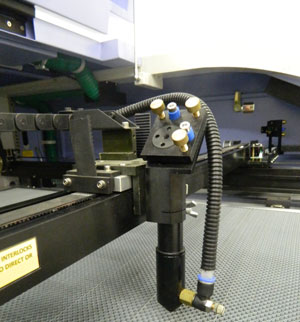

10. Air Assist System


This equipment comes equipped with one air compressors fix inside of machine to feed the air assist system to clear smoke & debris from the work area, cool and protect the Laser Head focusing lens, diminish the amount of flaming, scorching, charring from the work piece, and reduce the chances of ignition when it is working with flammable materials.

11. Emergency Stop Button and Safety Sensors


An easy-to-use multilingual LCD Control Panel is incorporated as well as Potentiometers to regulate the laser tubes output, laser beam activator button.
Our laser machines are equipped with security sensors and safety features disabling the equipment in case of inappropriate use or unsafe operational conditions, as well as the ability for the machine operator to IMMEDIATELY and completely shut down the entire machine in the event such a situation or circumstances arise.

Compare with the common laser engraver and cutter, CM-1309SH has more advantages as bellow:

LCM-CM1309SHB   Common Machine

Laser head: Enclosed   Laser head: Unenclosed

Guide rail: High precision equilibrium linear guide rail imported from Korea   Guide rail: Chinese quality common aluminum guide rail

usages

application
1. Signs, Awards and Trophies, Furniture and Frame, Cabinets, Engineering and Architecture, Custom Crates.

2. Two 130W laser tubes and stepper motors to get faster and better cutting and engraving: Acrylic, Plastics, Wood, Plywood, MDF, Foam, Cardboard.

3. Textile and Apparel, Shoes and Leather, Labels Manufacturing, Arts, Printing.
Stepper motors to get precision, transmission system of laser beam: Silicon mirrors 99% reflection, lens from the US for a clean cutting and engraving: Leather and Chamois, Any Fabric, Push, Tulle, Laserable Metal.

process

Quality Instructions:

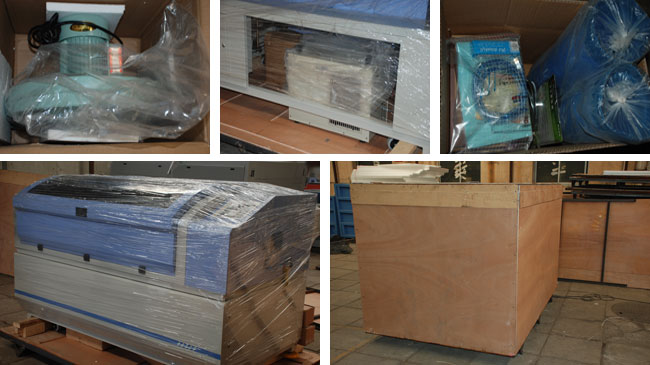

 Handling - Shipping & Delivery
